Simple Guide to Use Python webrtcvad to Remove Silence and Noise in an Audio – Python Tutorial

By | July 7, 2022

Python webrtcvad is a powerful tool to remove silence and noise in a audio. In this tutorial, we will introduce you how to use it to remove them.

Python librosa also can remove silence in an audio. You can view:

Python Remove Silence in WAV Using Librosa – Librosa Tutorial

Python webrtcvad installation

We can use python pip command to install webrtcvad. Here is the installation guide.

Fix Python webrtcvad Installation “basetsd.h”: No such file or directory on Win 10 – Python Tutorial

How to use python webrtcvad to remove silence and noise in an audio?

We will create some functions to implement it. For example:

import librosa
import os
import random
import numpy as np
import matplotlib.pyplot as plt
import soundfile

##
#!/usr/bin/env python
# -*- coding: utf-8 -*
from warnings import warn
import webrtcvad
from librosa.core import resample
from librosa.util import frame

def rle(inarray):
    '''run length encoding. Partial credit to R rle function .
       Multi datatype anrays catered for including non Numpy
       returns: tuple (runlengths, startpositions, values)'''

    ia = np.asarray(inarray) # force mumpy
    n = len(ia)
    if n == 0:
        return (None, None, None)
    else:
        y = np.array(ia[1:] != ia[:-1])
        i = np.append (np.where(y), n - 1) # must include Last element posi
        z = np.diff(np.append (-1, i))
        p = np.cumsum(np.append (0, z))[:-1] # positions
    return(z, p, ia[i])

def showVoiceTime(vact_left, fs):
    z, p = rle(vact_left)[0], rle(vact_left)[1]
    print("start, end (s)")
    for i,j in zip(z, p):
        if (vact_left[j]==1) :
         print("{}s ,{}s".format(round(j/fs,2),round((i+j)/fs,2)))

def splitWav(path, sr = 8000) :
    data, samplerate = librosa.load(path, sr = sr, mono = False)
    data =data.T
    #samplerate, data = wavfile. read (path)
    left = []
    right = []
    for item in data:
        left.append(item[0])
        right.append(item[1])
    return np.array(left), np.array(right)

def get_wav_list(source_file):
    wav_lst = []
    for root, dirs, files in os.walk(source_file):
        for file in files:
            if file.endswith ('.wav') or file.endswith('.WAV'):
                wav_file = os.sep.join([root, file])
                wav_lst.append (wav_file)
    return wav_lst


def vad(data, fs, fs_vad=16000, hop_length=30, vad_mode=0):
    """"
    Voice activity detection.

    This was implementioned for easier use of py-webrtcvad.
    Parameters:

    data: ndarray
        numpy array of mono(1 ch) speech data.
        1 - d or 2 - d,
        if 2 - d, shape must be (1, time_length) or (time_length, 1).
        if data type is int, -32768 < data < 32767.
        if data type is float, -1 < data < 1.
    fs: int
        sampling frequency of data.
    fs_vad: int, optional
        Sampling frequency for webrtcvad.
        fs_vad must be 8000, 16000, 32000 or 48000.
        Default is 16000.
    hop_length: int, optional
        step size[milli second].
        hop_length must be 10, 20, or 30.
        Default is 0.1.
    vad_mode: int, optional
        set vad aggressiveness.
        As vad_mode increases, it becomes more aggressive.
        vad_mode must be @, 1, 2 or 3.
        Default is 0.

    Returns
    vact: ndarray
        voice activity. time length of vact is same as input data.
        If 0, it is unvoiced, 1 is voiced.
    """
    # check argument
    if fs_vad not in [8000, 16000, 32000, 48000]:
        raise ValueError('fs_vad must be 8000, 16000, 32000 or 48000.')

    if hop_length not in [10, 20, 30]:
        raise ValueError('hop_length must be 10, 20, or 30.')

    if vad_mode not in [0, 1, 2, 3]:
        raise ValueError("vad_mode must be 0, 1, 2 or 3.")

        # check data
    if data.dtype.kind == 'i':
        if data.max() > 2 ** 15 - 1 or data.min() < -2 ** 15:
            raise ValueError(
                    'when data.type is int, data must be - 32768 < data < 32767.')
        data = data.astype('f') / 2.0**15

    elif data.dtype.kind == 'f':
        if np.abs(data).max() > 1:
            raise ValueError(
                    'when data.type is float, data must be - 1.0 <= data <= 1.0.')
        data = data.astype('f')

    else:
        raise ValueError('data.dtype must be int or float.')

    data = data.squeeze()
    if not data.ndim == 1:
        raise ValueError('data must be mono (1 ch).')

    # resampling
    if fs != fs_vad:
        resampled = resample(data, fs, fs_vad)
        if np.abs(resampled).max() > 1.0:
            resampled *= (0.99 / np.abs(resampled).max())
            warn('Resampling causes data clipping. data was rescaled.')

    else:
        resampled = data

    resampled = (resampled * 2.0 ** 15).astype('int16')

    hop = fs_vad * hop_length // 1000
    framelen = resampled.size // hop + 1
    padlen = framelen * hop - resampled.size
    paded = np.lib.pad(resampled, (0, padlen), 'constant', constant_values = 0)
    framed = frame(paded, frame_length=hop, hop_length=hop).T

    vad = webrtcvad.Vad()
    vad.set_mode(vad_mode)
    valist = [vad.is_speech(tmp.tobytes(), fs_vad) for tmp in framed]

    hop_origin = fs * hop_length // 1000
    va_framed = np.zeros([len(valist), hop_origin])

    va_framed[valist] = 1

    return va_framed.reshape(-1)[:data.size]


def do_vad(wav, **kwargs):
    isDraw = kwargs.get("isDraw", True)

    sample_rate = kwargs.get("sample_rate", 8000)
    vad_mode = kwargs.get("vad_mode", 3)
    hop_length = kwargs.get("hop_length", 10)
    min_vad_wav_time = kwargs.get("min_vad_wav_time", 0.5)
    time = np.linspace(0, len(wav) / sample_rate, len(wav))
    vact = vad(wav, sample_rate, fs_vad=sample_rate, hop_length=hop_length, vad_mode=vad_mode)
    r = rle(vact)
    z, p = r[0], r[1]
    # ABARGS FAA NEAR BREE
    for i, j in zip(z, p):
        # — print("{}s ,{}s".format(j/fs,i/fs) )
        if i<(min_vad_wav_time * sample_rate) and vact[j] == 0:
            vact[j:j + i] = vact[j] * -1 + 1
    if isDraw:

        fig, ax1 = plt.subplots(figsize=(24, 6))
        ax1.plot(time, wav, label='speech waveform')

        ax1.set_xlabel("TIME [s]")
        ax2 = ax1.twinx()
        wav_len = min(vact.size, time.size)
        ax2.plot(time[0: wav_len], vact[0: wav_len], color = "r", label = 'vad')
        plt.yticks([0, 1], ('unvoice', 'voice'))
        ax2.set_ylim([-0.01, 1.01])
        plt.legend()
        plt.show()
    return vact

def splitwavandvad(wav_path) :
    sample_rate = 8000
    vad_level = 3

    # — Left_wav_bytes = splitwav(wav_path) [0]
    vact_left = do_vad(wav = splitWav(wav_path)[0],**dict (vad_mode=3,min_vad_wav_time=0.5))
    showVoiceTime(vact_left, sample_rate)
    vact_right = do_vad(wav = splitWav(wav_path)[1],**dict(vad_mode=3,min_vad_wav_time=0.5))
    showVoiceTime(vact_right, sample_rate)

def wav_vad(audio_data, sample_rate = 8000, min_vad_wav_time = 0.5):

    vact_left = do_vad(audio_data, **dict(vad_mode=3,min_vad_wav_time = min_vad_wav_time))
    r = rle(vact_left)
    z, p= r[0], r[1]
    nonsil_audio = []
    for i,j in zip(z,p):
        if vact_left[j]==1:
            nonsil_audio.extend(audio_data[j:i+j])
    return np.array(nonsil_audio)
def save_wav(audio, fx, sr = 8000):
    soundfile.write(fx, audio, sr, 'PCM_16')

Then we can start to remove.

First, we can see where is the silence and noise in an audio file.

wav = r"audio_data/speech-us-gov-0028.wav"
wav_data, sr = librosa.load(wav, sr = 8000, mono = True)

vad_wav = do_vad(wav = wav_data,**dict(vad_mode=3,min_vad_wav_time=0.5))

Here we should notice the sample rate is 8000 and the wav_data is a single channel.

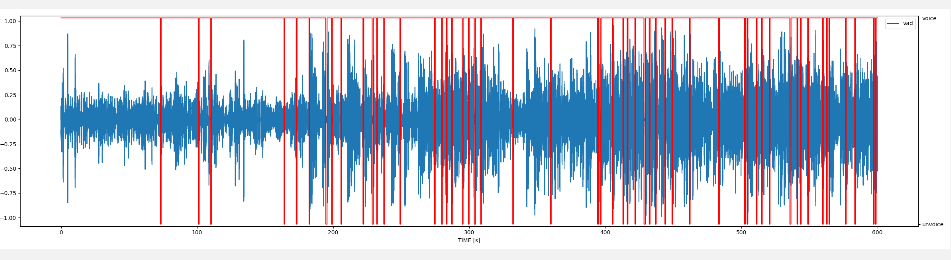

Run this code, we may see:

Simple Guide to Use Python webrtcvad to Remove Silence and Noise in an Audio - Python Tutorial

Moreover, if you want to save audio data without noise and silence, we can do as follows:

wav = r"audio_data/speech-us-gov-0028.wav"
wav_data, sr = librosa.load(wav, sr = 8000, mono = True)

nosil_wav = wav_vad(wav_data)
print(nosil_wav)
save_wav(nosil_wav, "test001.wav")

Here the sample rate is also 8000, we will save audio data without silence and noise to file test001.wav

However, if you use librosa.load() to get a wav data that is greater than 1.0, you can read this solution.

Fix librosa.load() is greater than 1.0 – Python Librosa Tutorial
